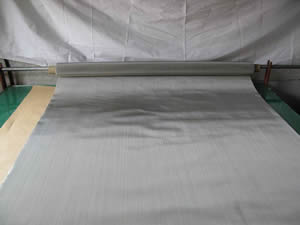

Twill Weave  Cloth

Each weft wire passes over two and under two warp wires, and each warp wire passes over and under two weft wires. The wire diameter for both(warp and weft)is mostly the same.

Characteristics: square aperture, less rigid than plain weave, especially suitable for deforming, strong wire cloth due to ratio of wire diameter and aperture, it is mostly used for filtration less than 63 μm .

Mesh Count Warp x Weft	Wire Dia mm	Wire Dia inch	Aperture mm	Aperture inch	Micron Rating
100 x 100	0.1250	0.0049	0.1295	0.0051	130
120 x 120	0.0939	0.0037	0.1168	0.0046	117
165 x 165	0.0482	0.0019	0.1041	0.0041	104
200 x 200	0.0584	0.0023	0.0685	0.0027	68
250 x 250	0.0533	0.0021	0.0482	0.0019	48
300 x 300	0.0355	0.0014	0.0482	0.0019	48
300 x 300	0.0400	0.0016	0.0431	0.0017	45
325 x 325	0.0355	0.0014	0.0406	0.0016	41
350 x 350	0.0304	0.0012	0.0431	0.0017	43
400 x 400	0.0304	0.0012	0.0330	0.0013	33
500 x 500	0.0254	0.0010	0.0253	0.0010	25
